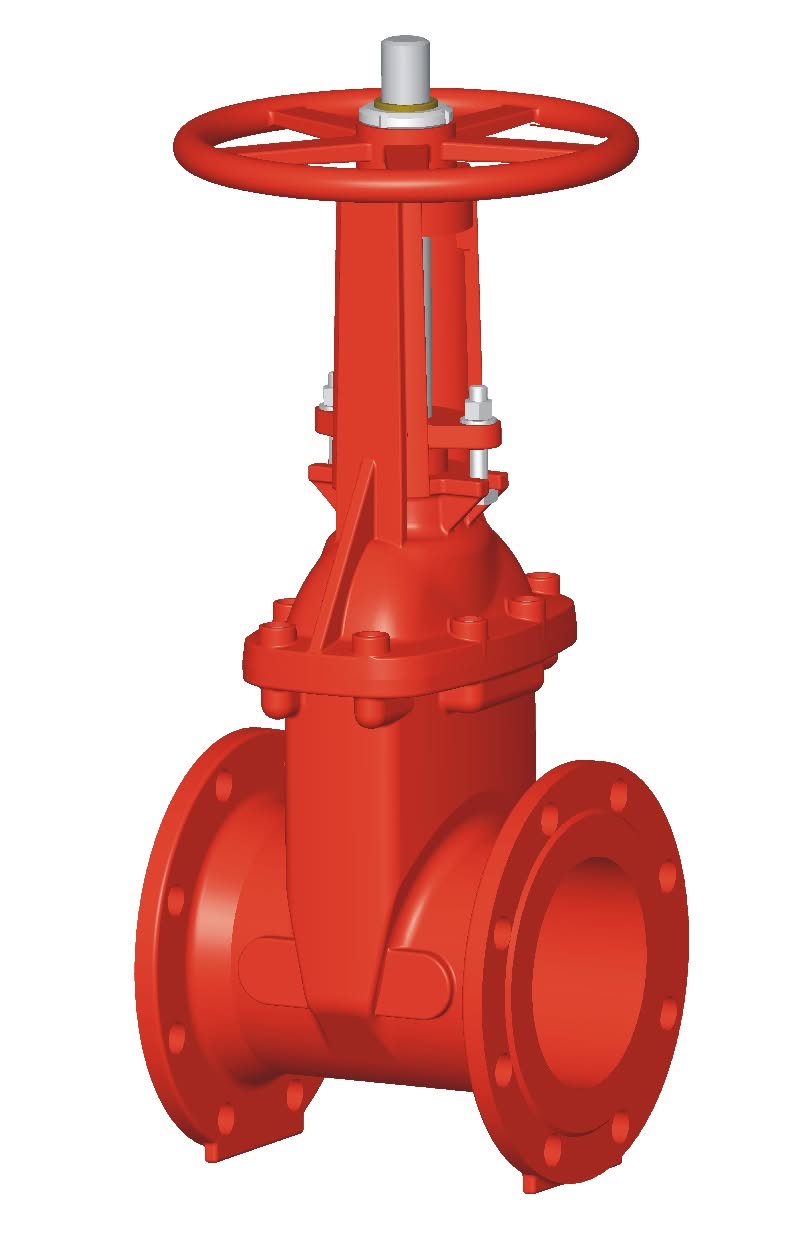

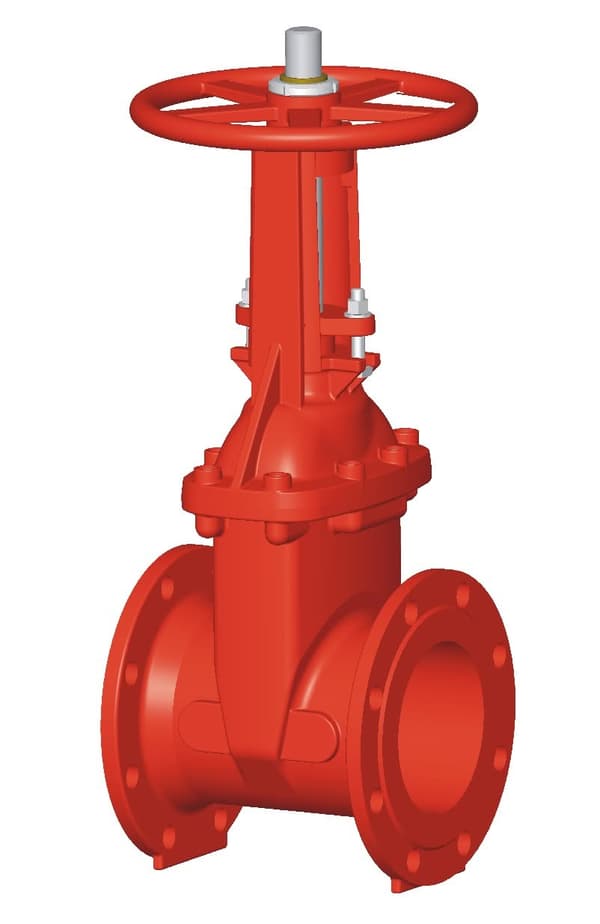

Weflo FM/UL OS&Y Resilient Seated Gate Valve Fig. F0111-300
-Meet or exceed the requirements of AWWA C515 Standard.
-Full Waterway.
-Adjustable Packing.
-Rubber Fully Encapsulated Ductile Iron Wedge.
-Handwheel – open left or open right.
-Face to Face Dimension complies with ASME B16.10 and
-EN558 series 3.
-Flange and Drilling complies with ASTM B16.1 Class 125.
-UL/ULC 262 Listed, FM 1120/1130 Approved and GOST Certified.
-ANSI/NSF 61 & 372 Certified.
-Rated Working Pressure:
-300 psi for 2″ to 12″
-250 psi for 14″ to 18″
-200 psi for 20″ to 24″
Brand
Weflo
